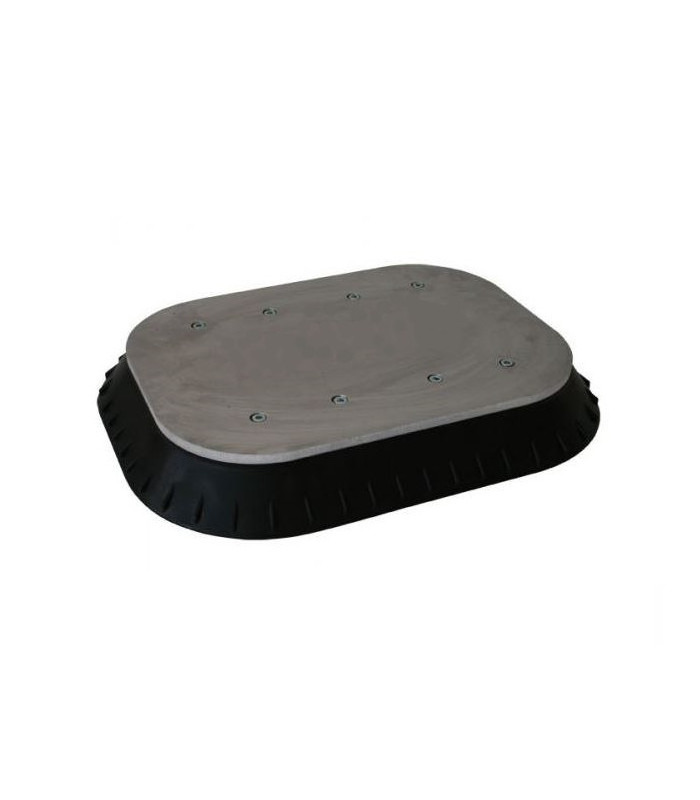

K01500 SUCTION PAD STEEL INDUSTRY 380 x 500 MM BLACK NBR

CARRYING CAPACITY : 340 KG Safety factor 3, -0,8 BARS

Suction seal steel industry 380 x 500 mm with attached black NBR 60 shore with 8 holes on the suction cup for mounting the two plates, one being at the inside and the other to the outside.

A hole for passage of the vacuum.

Aluminium base plate customizable according to need (eg fixings chain of 1 to 4 points, lifting ring or screed, fitting diameter vacuum, etc ....).
