K9041
New product

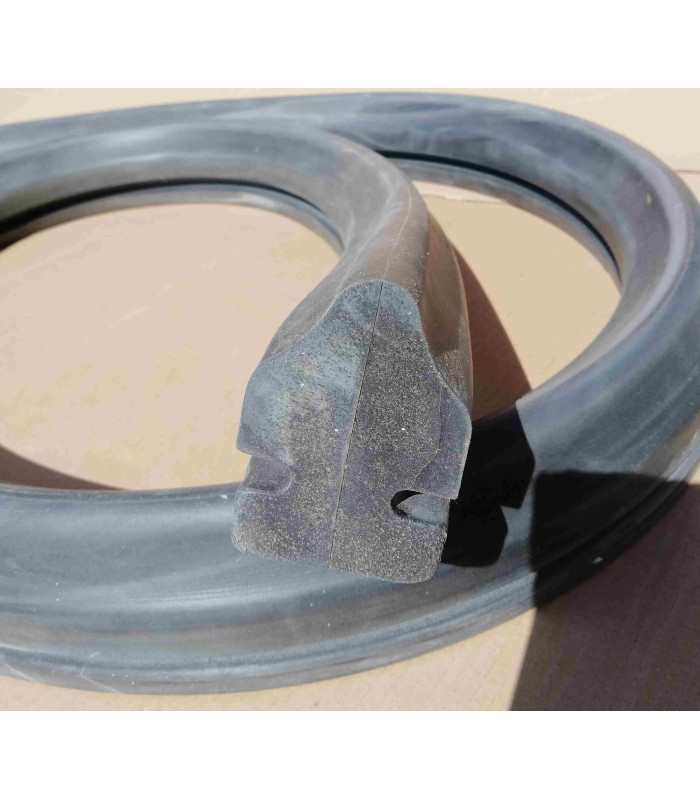

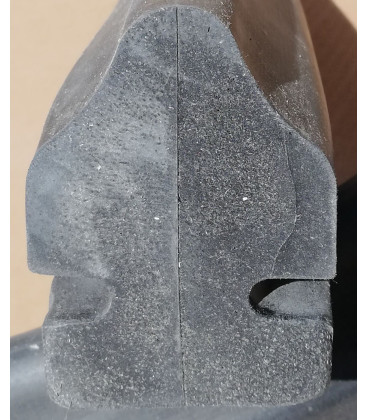

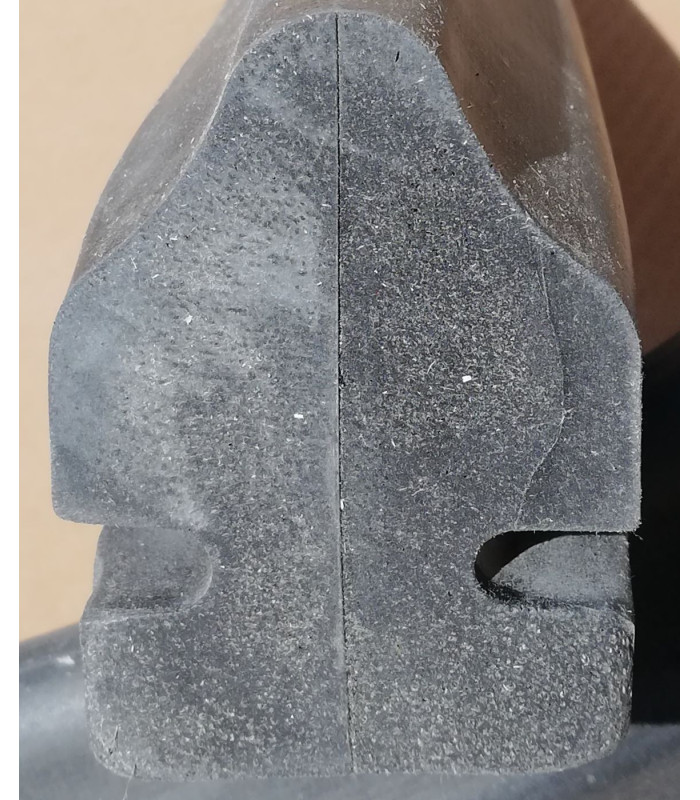

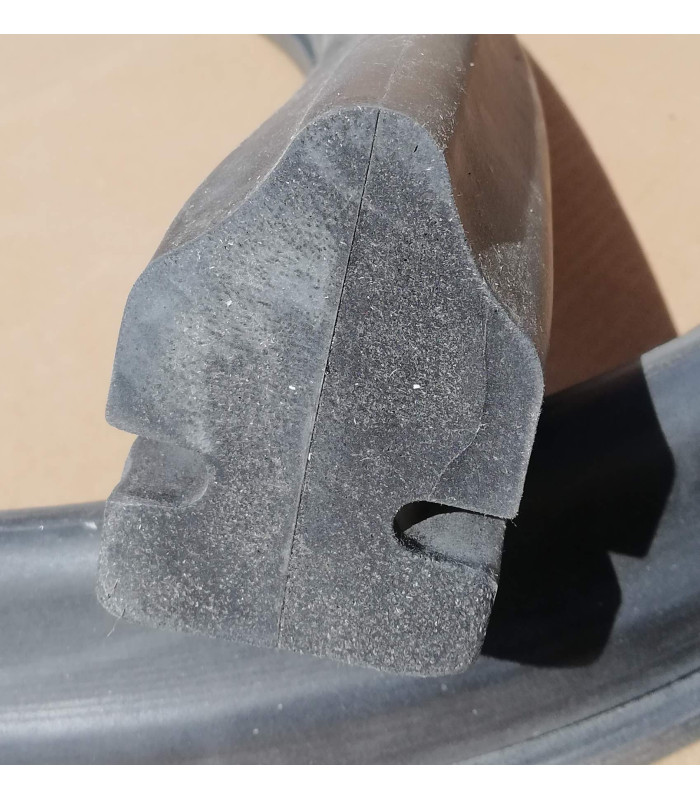

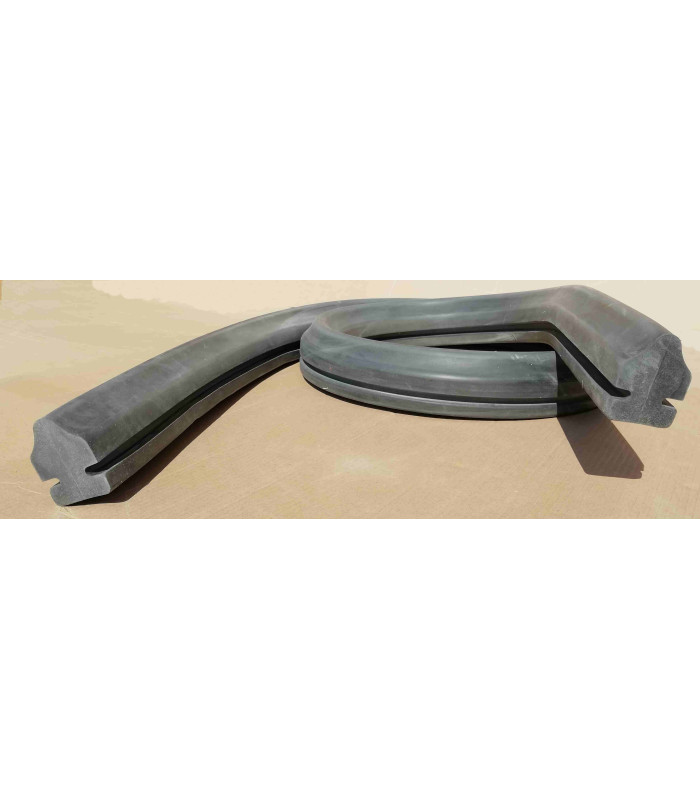

EXTRUDED RUBBER 70x50mm WITH SLOT ON BOTH SIDES.
VACUUM PLATE GASKET SEAL FOR CONCRETE AND PIPE APPLICATION.
USE IF IMPORTANT DEFORMATION OF THE WORKPIECE HANDLING.
RUBBER GASKET SEAL , CELLULAR EPDM DENSITY 450
MASS ABOUT 1,8 KG PER M
SALE PER 3 or 25 ml (on demand)
VERTICAL GRIPPING
THIS SEAL PERMITS TO MAKE A SMALL SUCTION VACUUM PAD INSIDE THE MAIN SUCTION VACUUM PAD. A FIRST VACUUM CIRCUIT GENERATES VACUUM IN THE SMALL SUCTION. THIS IN CONTACT, WITH THE PART, MOVES THE MAIN VACUUM PAD AND COMPRESS THE PERIPHERAL SEAL. AFTER COMPRESSION OF SEAL, THE SECOND VACUUM CIRCUIT GENERATES VACUUM. DURING LIFTING THE TWO CIRCUITS WORK.
EXTRUDED FOAM SEAL WITH TWO SLOTS ON EACH SIDE OF THE PROFILE.
FOAM SEAL WITH SKIN ON ALL PROFILE SURFACE.
MASS ABOUT 1.8 KG BY METER
Width | 50 MM |
Height | 70 MM |
Length | 3 ML |
Weight | 6 Kg |
Compositions | CELLULAR EPDM, DENSITY 450 |
Properties | EXTRUDED RUBBER SEAL |
volume | 0,128 M3 |
